Our advanced Plastic PE Tube Extrusion Machine Line is designed for high-efficiency manufacturing of PE water pipes, cable conduits, and protective tubing with superior precision and durability. This fully automated production line integrates cutting-edge extrusion technology to ensure consistent wall thickness, smooth surfaces, and excellent mechanical properties.
PE Pipe Production Specifications
| Model |
Pipe Diameter |
Extruder |
Extruder Power |
Capacity |
| LB-63 |
20-63 |
SJ65/33 |
55AC |
150 |
| LB-110 |
20-110 |
SJ65/33 |
55AC |
150 |
| LB-160 |
75-160 |
SJ75/33 |
90AC |
280 |
| LB-250 |
90-250 |
SJ75/33 |
110DC |
350 |
| LB-315 |
110-315 |
SJ90/33 |
160DC |
450 |
| LB-450 |
160-450 |
SJ90/33 |
160DC |
450 |
| LB-630 |
315-630 |
SJ120/33 |
280DC |
850 |
| LB-800 |
500-800 |
SJ150/33 |
315DC |
1100 |
| LB-1200 |
710-1200 |
SJ150/34 |
400DC |
1350 |
Production Line Features
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
PE Pipe Production Line Components
Raw material + master batches → mixing → vacuum feeder → material dryer → single screw extruder (small CO-extruder) → mould → vacuum calibration tank → spray cooling tank (water tank) → haul-off unit → cutting machine → stacker
Key Equipment Components

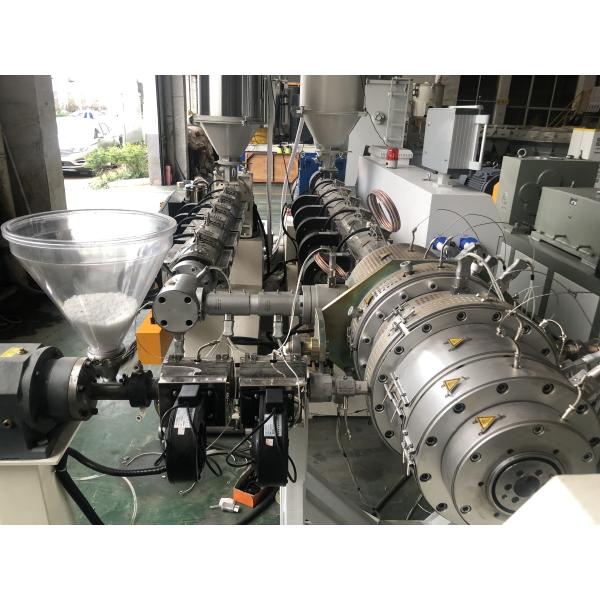

Single Screw Extruder Machine: Using high efficient single screws, specially designed for PP, PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system guarantees high quality pipe extrusion.
Pipe Extrusion Mould: Spiral type die head ensures high speed extrusion and avoids thermal decomposition of amorphous plastics for high quality pipes. Heating control system inside the mould provides high efficiency and easy extrusion. Bronze calibrators enable fast pipe calibration and cooling.
Vacuum Cooling Tank and Spraying Cooling Tanks: Rapid vacuum calibrating system cools hot extruded pipes quickly to obtain final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve enhance pipe sizing, cooling performance, and production speed.
Haul Off Machine: Adopts crawler track type with various claw configurations (two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve-claw types) suitable for different pipe sizes. Abrasion resistant rubber track blocks ensure high and stable hauling speed.
Cutting Machine: Precision machine cutter makes flat, straight cuts at high speed. Powerful suction device gathers waste scraps for easy cleaning.
Pipe Stacker or Pipe Coiler: Automatic pipe stacker for packing pipes; pipe coiler for small PE pipes (16-40mm, 16-75mm, 50-110mm).
Key Advantages of PE Pipe Extrusion Line
- Advanced extrusion technology ensures stable, high-speed production with consistent pipe quality
- Precision-controlled screw and die design guarantee uniform wall thickness and pipe dimensions
- Optimized heating/cooling systems reduce energy consumption
Pre- and After-Sale Services
- Extensive industry experience and consistent focus on highest quality
- Complete twin pipe vacuum sizing system
- Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device
- Optional length set and accurate adaption stacker
- Highly motivated team with sophisticated process technology
- Customized solutions for specific production requirements
